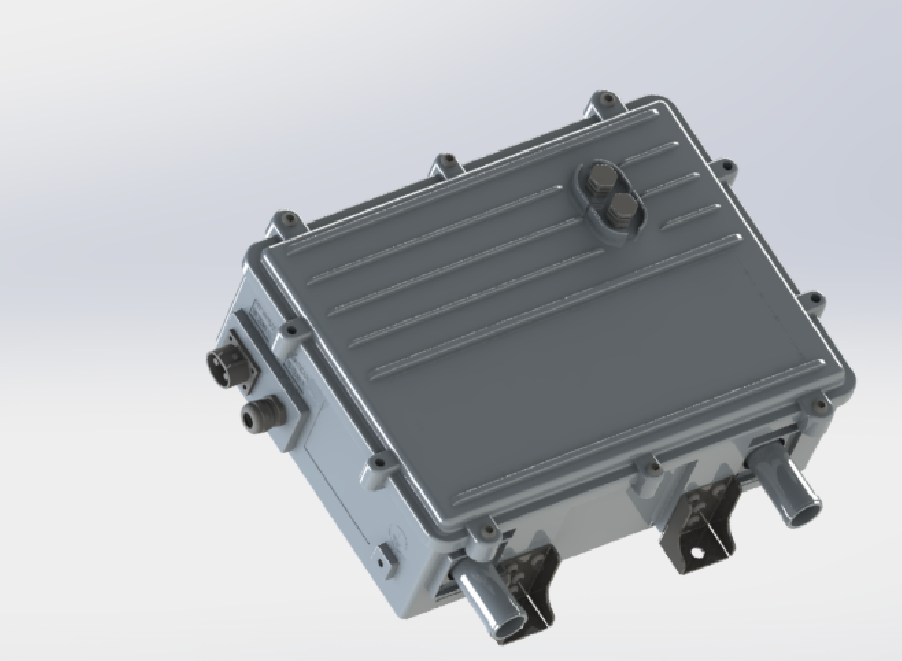

    Electric Coolant Heater Jeep 4xe DC PTC Water Heater

    Ask Lasest Price
    Brand Name : EVPTC
    Model Number : QA
    Certification : CE
    Price : $1200-1500 per set
    Payment Terms : T/T
    Supply Ability : 100 sets per 2 weeks
    Delivery Time : 15-20days
    • Product Details
    • Company Profile

    Electric Coolant Heater Jeep 4xe DC PTC Water Heater

    QA01-Series (15-25kW): The Premium DC High Voltage Water Coolant Heater with Adaptive Performance Capabilities


    1. It offers precise temperature control, allowing users to adjust the water temperature to their desired level.
    2. The heater is constructed using high-quality materials, ensuring durability and long-term reliability even in demanding water heating applications.
    3. It is resistant to corrosion and scale buildup, extending the lifespan of the heater and ensuring consistent performance.


    The transition to colder months necessitates a reliable and efficient heating solution, especially for large vehicles constantly on the move. Introducing the HVCH QA01 Series – an interior water coolant heater that stands unmatched in its category. Designed for substantial vehicles, this heater facilitates not only an impressive water circuit heating capability but also promises stepless performance regulation, assuring a consistent and powerful heating environment time after time.


    Specification:


    HVCH QA01 Series
    Heat Output15-25kW
    HV Voltage RangeDC 250-870V

    LV Voltage

    DC 24V nominal
    Efficiency> 95 %
    Controllability Steps100W
    Dimensions365*313*123mm
    Weight9kg
    Temperature Range for Heating-40 to 90 ℃
    Temperature Range for Ambient-40 to 125 ℃
    CommunicationCAN or LIN2.1
    Dielectric Strength3500 V (DC)
    IP Protection ClassIP 67
    EMCECE R10 Rev. 5
    Insulation Resistance500MΩ
    Service Life10 years or 10,000 heating hours


    Product Attributes:

    1. Exceptional Water Resistance: Navigating through muddy paths or enduring rain-soaked days is no longer a concern. The coolant heater showcases a remarkable IP 67 water and dust resistance, validated with comprehensive reports.
    2. Flexible Performance Regulation: With capabilities to modulate water outlet temperature and power consumption ceilings, it has found its place in thousands of vehicles, earning commendations for its top-notch quality.
    3. Enhanced Dual Protection System: Features a dual-layer protection system, combining mechanical and electronic defenses to safeguard against short circuits, overloads, or over-temperature scenarios.
    4. Water-Electricity Separation: Achieving an immaculate separation between water and electrical components, this feature resolves the conflicting requirements of heat transmission efficiency and DC 3500 V insulation standards, leading to wider acceptance and usage since 2021.
    5. Self-Regulating PTC Thermistor Heater: Incorporating the benefits of PTC heating technology, this feature promises dynamic power adjustments without surpassing the maximum temperature threshold, ensuring energy efficiency and high reliability without additional elements.


    Applications:


    In cold regions or during severe winter periods, large vehicles demand sophisticated heating solutions. The HVCH QA01 Series, with its powerful output range, has established itself as the ideal solution, especially in the colder northeastern and northwestern regions of China. It caters to a variety of needs including heating, defrosting, and battery heating, allowing for power adjustments as per user requirements, along with customization options for voltage and power specs.



    Our Services:

    • Direct Supplier Advantage: As direct suppliers, we eliminate intermediary costs, offering you significant savings.
    • Bulk Order Discounts: Large orders enjoy considerable discounts, with welcoming terms for trial orders as well.
    • Swift Response Time: Our team is committed to responding to your inquiries within a span of 24 hours.
    • Competitive Pricing: Our pricing strategy is both reasonable and competitive, promising great value.
    • Manufacturers Assurance: As manufacturers, we have the capability and resources to meet your varied demands efficiently.
    • Unwavering Commitment to Quality: We prioritize your needs, striving tirelessly to meet your expectations at every level.

    Competitive Advantages:

    1. Safety and Dependability: Our products undergo stringent quality checks to guarantee safety and reliability under diverse conditions.
    2. Customized Solutions: We offer OEM services, adapting our products to meet your specific design needs.
    3. Stable Performance: Renowned for stable performance, our products are built to withstand diverse environmental conditions.
    4. Weather Resilient: Our products are weatherproof, providing excellent insulation, and dry burning resistance.
    5. High-Voltage and High-Power Excellence: Our heaters symbolize a synergy of high voltage, power, intelligence, and reliability, offering an unparalleled competitive edge in the market.
