KA01-Series (6-10kW)Nominal Voltage DC 690V High Voltage Coolant Heater For Heat Pump System

1. The PTC heater is compatible with various high-voltage applications, including electrical cabinets, switchgear, and power distribution equipment.
2. It offers customizable heating settings, allowing users to adjust the temperature and heating profiles to meet specific requirements.
3. The heater is designed for easy installation and maintenance, with accessible components and user-friendly interfaces.

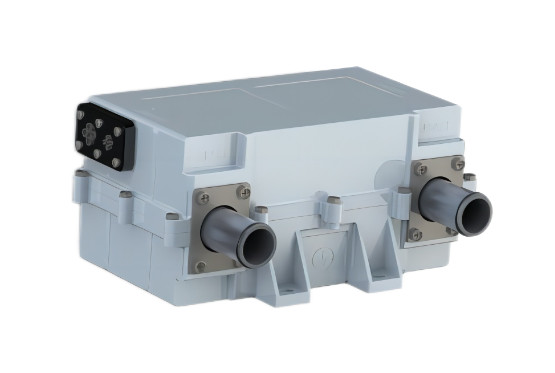

HVCH KA01 Series is a small and delicate PTC electric water heater with the maximum power up to 10KW. Stepless adjustment function, CAN or LIN communication could be OEM according to customer requirements. KA01 was designed for the heat pump system in vehicle thermal management. Its shell is aluminum die-cast, whose surface has been made anti-corrosion treatment.The performance of EMC is superior. KA01 is a good choice for providing preheating or auxiliary heating for the heat pump.

HVCH KA01-Series could quickly, consistently,powerfully and reliably heat the vehicle interior. The compact device ensures a constantly high heat output of 6kW-10kW and allows for flexible use in a power range of 350 to 850 Volts. HVCH KA01-Series features infinitely variable heat output control by means of an integral control unit. This takes place either by regulating the water outlet temperature or by limiting the maximum heat output or power consumption. Furthermore, it is CAN-capable and transmits key operating data to the vehicle system using an intelligent diagnostic function.

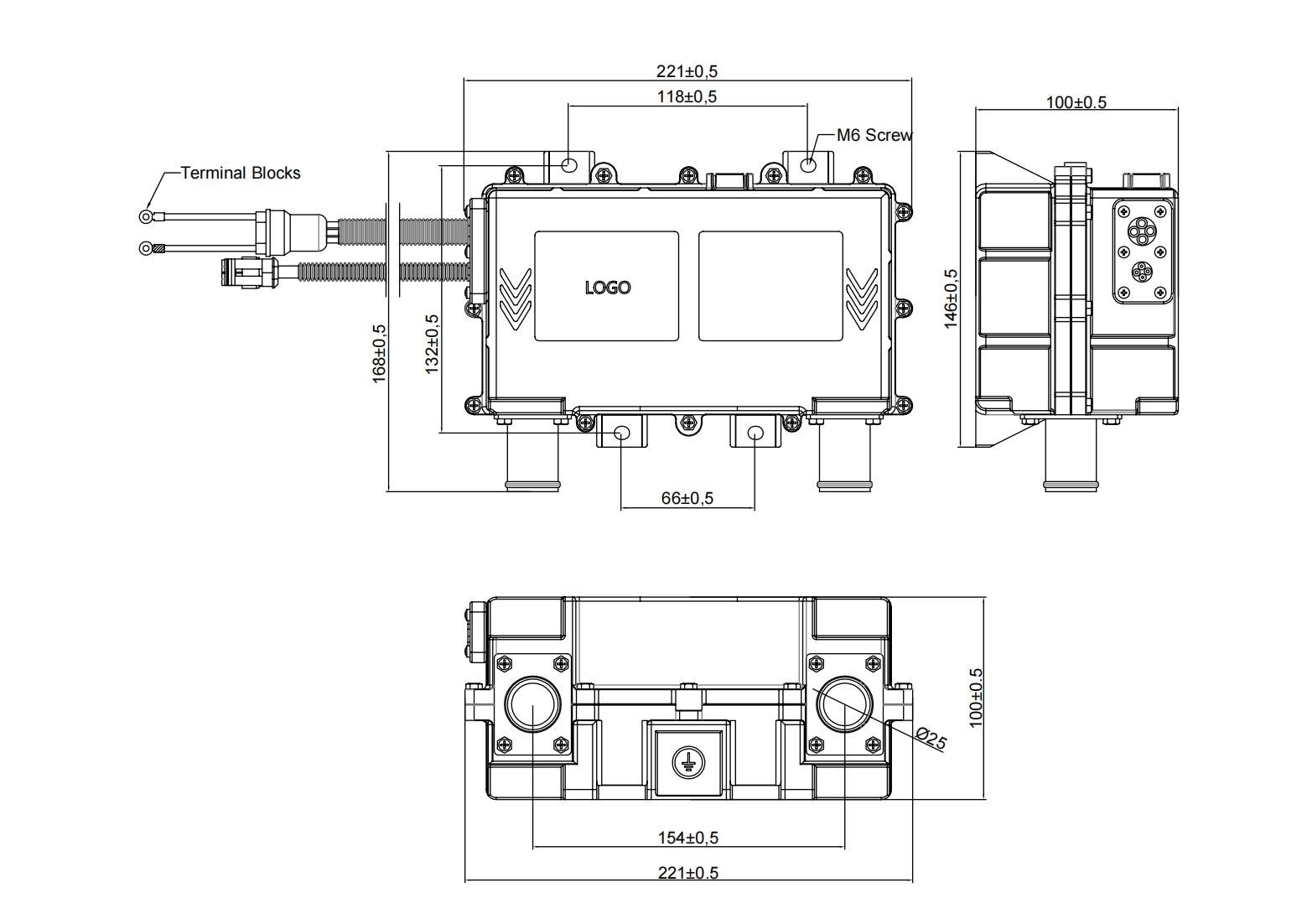

Specification:

Product Features:

Ø Excellent Water Resistance.

During the actual operation, muddy roads and wet rainy days and long playing in high temperature, all require our high voltage coolant heater excellent waterproof performance.IP 67 Water and dust proof reports can be provided.

Ø Stepless Regulate Performance.

This takes place either by regulating the water outlet temperature or by limiting the maximum heat output or power consumption.Our High Voltage coolant heater has been equipted in thousands of vehicles for three years ,the good quality has been accecpted by the custmers.

Ø Reliable Self-Protection System

The protection system includes mechanical protection device and electronic protection, which acts to shut the module down in reaction to a short circuit, overload, or over-temperature condition. In addition, We add the current fuse in the high voltage circuit.In addition to the temperature sensor, there is also a mechanical temperature switch inside.

Ø Completely Separation of Water and Electricity

Water and electricity is completely separated.Different from other manufacturers,we solve perfectly the contradiction between the heat transmission efficiency with the Insulation requirement of DC 3500 V.Benefits from this technical improvement, our 870V (nominal voltage) products have been mass produced and used in heavy dump trucks in 2021.

Ø PTC thermistor heater with self - controlled constant temperature.

PTC water coolant heater come with all advantages of the PTC heating technology. Thanks to the PTC effect, the heating elements dynamically adjust their power without exceeding a maximum temperature. High operational reliability and energy efficiency without any additional switching elements.

Application:

To guarantee a safe journey even in challenging climate conditions, vehicles must be ready for operation right from the start.

Sufficient power of 5 to 10kw can meet the heating, defrosting, battery heating and other needs of large vehicles. Users can adjust the power according to the demand, control the power consumption. We also provide customized service, which can be adjusted according to customer requirements, such as voltage, power, etc
