    Positive Thermal Coefficient Heater Three Phase Energy Storage BTMS AC 380V

    Ask Lasest Price
    Brand Name : EVPTC
    Model Number : KC01
    Certification : CE
    Price : $1500-2000 per set
    Payment Terms : T/T
    Supply Ability : 100 sets per 2 weeks
    Delivery Time : 15-20days
    • Product Details
    • Company Profile

    Positive Thermal Coefficient Heater Three Phase Energy Storage BTMS AC 380V

    1. It complies with international standards and certifications, ensuring adherence to quality and safety requirements.
    2. The heater is backed by comprehensive technical support and customer service to ensure a seamless user experience.
    3. It is suitable for a wide range of battery applications, including automotive, marine, and renewable energy sectors.

    Positive Thermal Coefficient Heater Three Phase Energy Storage BTMS AC 380V

    HVCH KC01 Series is a small and delicate PTC electric water heater with the maximum power up to 12KW. KC01 was designed for the battery thermal management in Energy Storage System. Its shell is aluminum die-cast, whose surface has been made anti-corrosion treatment.


    HVCH KC01-Series could quickly, consistently,powerfully and reliably heat the battery. The compact device ensures a constantly high heat output of 6kW-12kW and allows for flexible use in a power range of 110 to 550 Volts. .


    Specification:


    HVCH KC01 Series
    Heat Output6-12kW
    HV Voltage RangeAC 300-600V
    Efficiency> 95 %

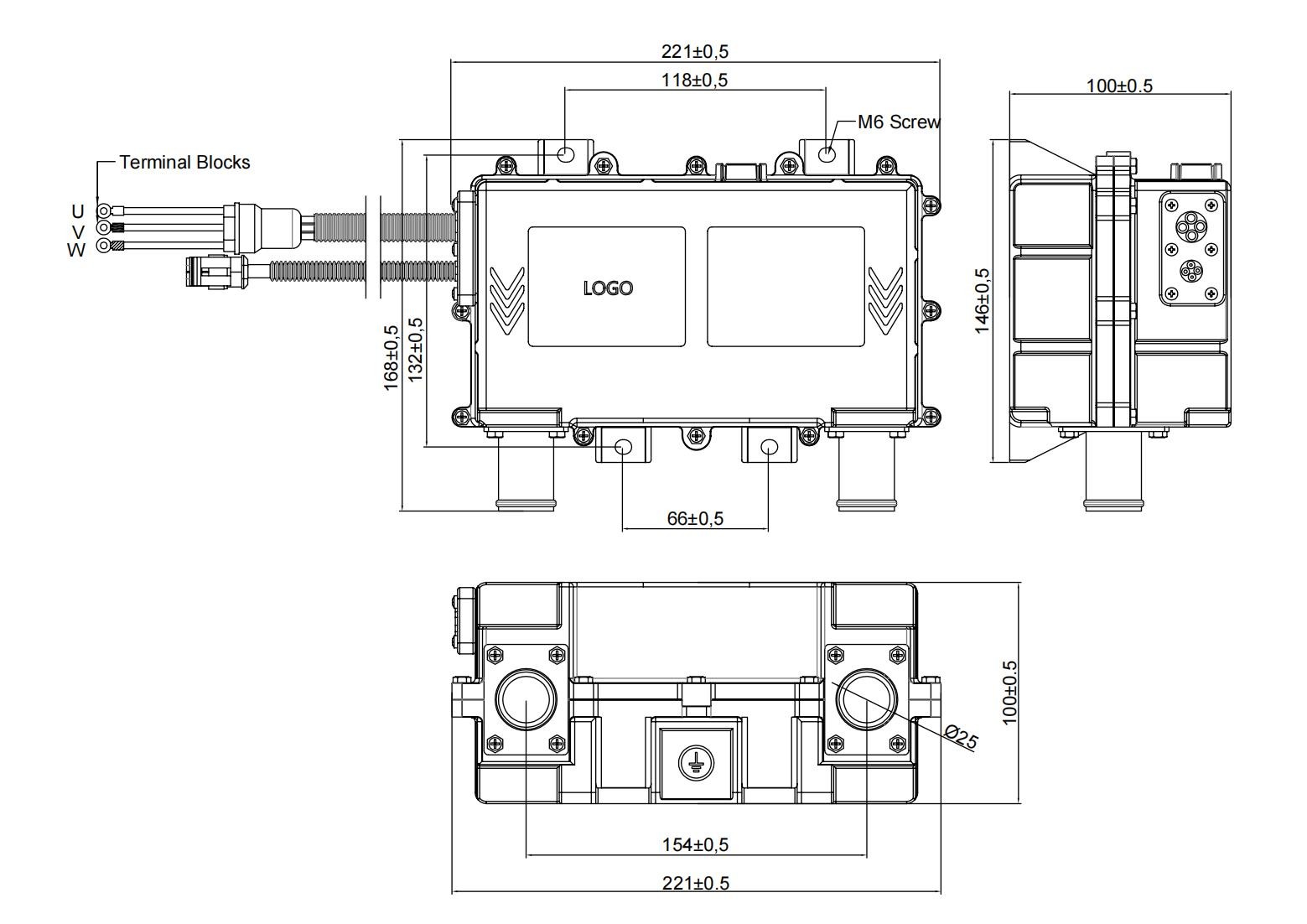

    Dimensions221*168*100mm
    Weight3kg
    Temperature Range for Heating-40 to 90 ℃
    Temperature Range for Ambient-40 to 125 ℃
    Dielectric Strength1800 V (AC)
    IP Protection ClassIP 67
    Insulation Resistance500MΩ
    Service Life10 years or 10,000 heating hours

    Positive Thermal Coefficient Heater Three Phase Energy Storage BTMS AC 380V


    Product Features:


    Ø Excellent Water Resistance.

    During the actual operation, muddy roads and wet rainy days and long playing in high temperature, all require our high voltage coolant heater excellent waterproof performance.IP 67 Water and dust proof reports can be provided.


    Ø Completely Separation of Water and Electricity

    Water and electricity is completely separated.Different from other manufacturers,we solve perfectly the contradiction between the heat transmission efficiency with the Insulation requirement of DC 3500 V.Benefits from this technical improvement, our 870V (nominal voltage) products have been mass produced and used in heavy dump trucks in 2021.


    Ø PTC thermistor heater with self - controlled constant temperature.

    PTC water coolant heater come with all advantages of the PTC heating technology. Thanks to the PTC effect, the heating elements dynamically adjust their power without exceeding a maximum temperature. High operational reliability and energy efficiency without any additional switching elements.


    Positive Thermal Coefficient Heater Three Phase Energy Storage BTMS AC 380V


    Application:


    To guarantee a safe journey even in challenging climate conditions, vehicles must be ready for operation right from the start.

    Sufficient power of 25 to 35kw can meet the heating, defrosting, battery heating and other needs of large vehicles. Users can adjust the power according to the demand, control the power consumption. We also provide customized service, which can be adjusted according to customer requirements, such as voltage, power, etc


    Positive Thermal Coefficient Heater Three Phase Energy Storage BTMS AC 380V


    Our service:


    1. We can supply you directly, save the agent fees and reduce your cost;
    2. Big order comes with big discount, trial orders are also welcome;
    3. Reply your enquiry within 24 hours;
    4. Price advantages:reasonable and competitive;
    5. We are manufacturer and possess strong strength;
    6. Do our utmost to meet your demands.


    Competitive Advantage:


    1. Safety and reliability
    2. OEM for your design
    3. Stable performance
    4. Water-proof, excellent insulating property

    5. Excellent dry burning resistance
    6. High Voltage,High Power,High Intelligence,High Reliability
