| Brand Name : | EVPTC |
| Model Number : | QB01 |
| Certification : | CE |
| Price : | $1500-2000 per set |
| Payment Terms : | T/T |
| Supply Ability : | 100 sets per 2 weeks |
| Delivery Time : | 15-20days |

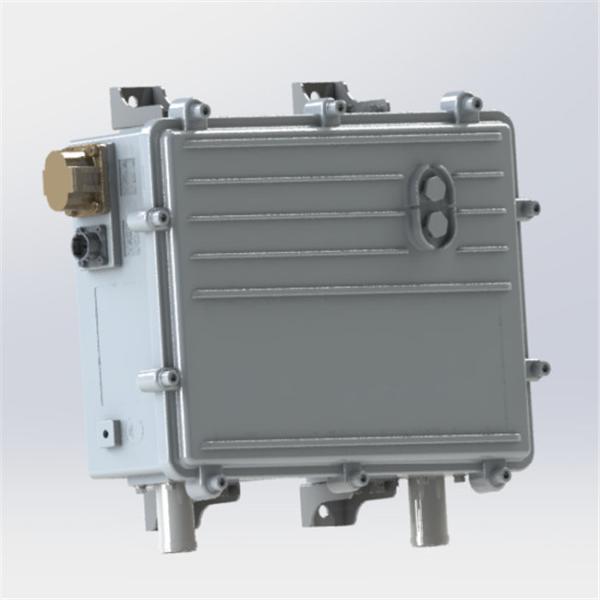

EVLINK QB Coolant Heater Series: Superior Thermal Management Solution for Electric Vehicles
Specification:
| HVCH QB01 Series | |
| Heat Output | 20-35kW |
| HV Voltage Range | DC 350-1100V |
| LV Voltage | DC 24V nominal |
| Efficiency | > 95 % |
| Controllability Steps | 100W |
| Dimensions | 365*313*123mm |
| Weight | 10kg |
| Temperature Range for Heating | -40 to 90 ℃ |
| Temperature Range for Ambient | -40 to 125 ℃ |
| Communication | CAN or LIN2.1 |
| Dielectric Strength | 3500 V (DC) |
| IP Protection Class | IP 67 |
| EMC | ECE R10 Rev. 5 |
| Insulation Resistance | ＞500MΩ |
| Service Life | 10 years or 10,000 heating hours |
With the advancement of electric vehicle technology, efficient and reliable heating systems are in the spotlight. EVLINK's QB series heaters, equipped with a dual-core connector from Zhong hang Photoelectric, blend modern technology with efficient design, offering enduring, stable, and safe heating performance. It's among the most sought-after heating solutions in today's market.
High Adaptability: The QB series, with its Zhonghang Photoelectric dual-core connector, offers efficient, stable connections for diverse vehicles.
Quick Start & Uniform Heating: Unique design ensures rapid startup times and even heating, quickly reaching desired comfort levels even in cold conditions.
Efficiency & Economical: Compared to traditional heaters, the QB series operates at a higher efficiency while consuming less power, saving energy costs for users.
EVLINK's QB series heaters are suitable not only for electric vehicles but also for retrofitted vehicles, public transport, and other scenarios demanding efficient heating.
Customization: Tailored heating solutions based on specific client requirements.
Technical Support: Comprehensive technical backing to ensure efficient and stable heater operation.
After-sales Service: Our service team is always on standby to address any concerns.
High-Performance Efficiency: The QB series from EVLINK is renowned in the market for its exceptional performance.
Reliability & Durability: Rigorous quality control ensures the longevity of our products.
Market Recognition: EVLINK has become the preferred supplier for many renowned brands, garnering widespread market acclaim.
|
|
