| Brand Name : | EVPTC |
| Model Number : | QB01 |
| Certification : | CE |
| Price : | $1500-2000 per set |
| Payment Terms : | T/T |
| Supply Ability : | 100 sets per 2 weeks |
| Delivery Time : | 15-20days |
QB Series High Voltage Heater: Powering Tomorrow's Electric
Mobility
Specification:
| HVCH QB01 Series | |
| Heat Output | 20-35kW |
| HV Voltage Range | DC 350-1100V |
| LV Voltage | DC 24V nominal |
| Efficiency | > 95 % |
| Controllability Steps | 100W |
| Dimensions | 365*313*123mm |
| Weight | 10kg |
| Temperature Range for Heating | -40 to 90 ℃ |
| Temperature Range for Ambient | -40 to 125 ℃ |
| Communication | CAN or LIN2.1 |
| Dielectric Strength | 3500 V (DC) |
| IP Protection Class | IP 67 |
| EMC | ECE R10 Rev. 5 |
| Insulation Resistance | ＞500MΩ |
| Service Life | 10 years or 10,000 heating hours |

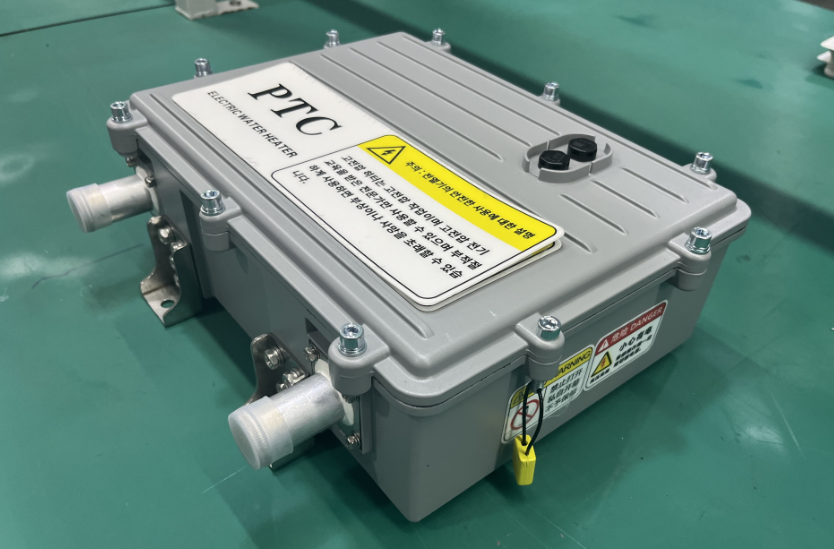

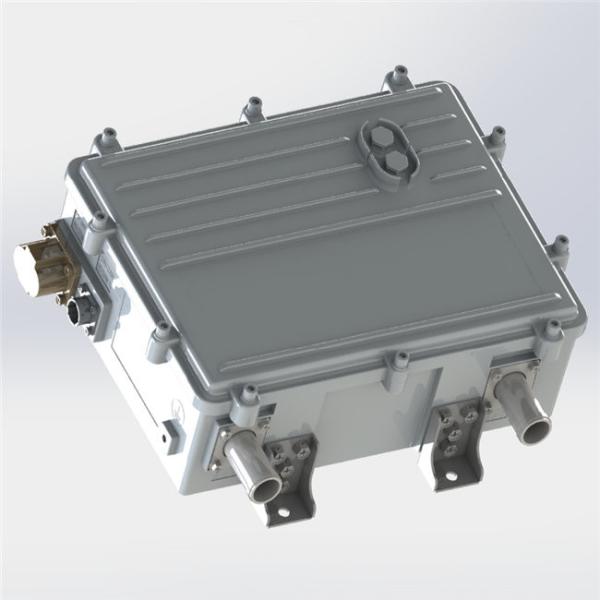

Introducing the QB Series High Voltage Heater, a futuristic heating solution tailored for plug-in hybrid vehicles (PHEV) and battery electric vehicles (BEV). Designed with precision, this series stands out by transforming DC electrical power into heat with almost no loss, ensuring zero-emission, extensive heating throughout the vehicle's interior.
Exceptional heat output independent of coolant medium temperature and operating voltage.
Comprehensive safety strategy ensures peace of mind.
Consistent and nearly 100% thermal conversion efficiency.
No inrush or peak currents, ensuring battery longevity.
Immediate and efficient heat transfer, designed for prompt response.
Fully compliant with global vehicle standards.

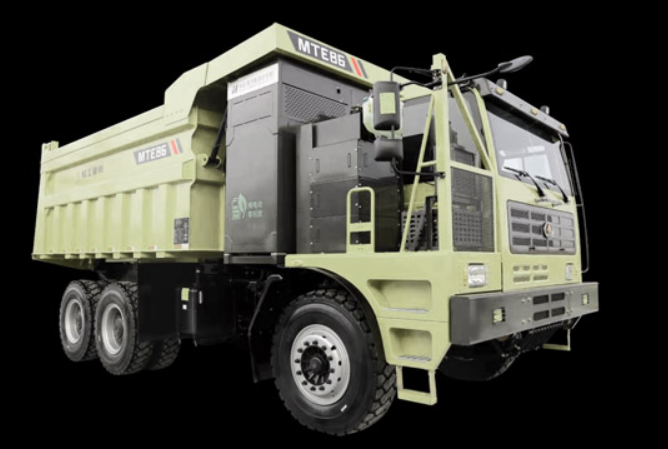

For electric vehicle batteries, the QB Series High Voltage Heater is the go-to solution for thermal management. It proficiently elevates the battery temperature from sub-zero surroundings to an optimal 20°C in record time, marking its superiority in the realm of battery-swapping heavy vehicles.
Guarantee timely delivery of samples and products.
Regularly update and communicate order status to our customers.
Comprehensive factory tours to showcase our manufacturing prowess.
Address unique needs with specialized technical services
Offer professional remote technical support and consultancy.
Deliver customized technical designs and pioneering solutions.
Unparalleled service combined with a cost-effective price structure.
A wide spectrum of designs tailored to customer requirements.
A team of professionals armed with vast experience, ensuring the best in class products and services.
|
|
